Product Info

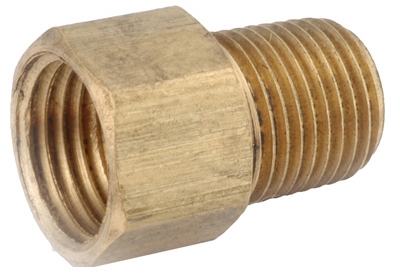

1/4 x 1/4-Inch Inverted Flare Connector

  • UPC: 719852907756
  • SKU: 883454
  • Model Number: 54348-0404
1/4" x 1/4", Inverted Flare Connector, Bulk.
  • Two Piece Construction - Nut And Body
  • Use With Copper, Brass, Aluminum, Or Steel Tubing
  • Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
  • Seats And Threads Are Recessed, Protecting Them
  • Shorter Overall Length, for Limited Space Applications
  • Shorter Nut Allows Tubing To Be Bent Closer To Fitting
  • Fair Vibration Resistance
  • Resists Mechanical Pullout
  • Easy To Disassemble, And Can Be Reassembed Many Times, With No Effect On The Seal
  • Primary Uses: Liquids, Gases And Hydraulic Brake Systems
  • To Assemble:
  • 1. Cut Smooth, Square End On Tubing
  • 2. Slide Nut On Tube - Threads Facing End
  • 3. Flare End Of Tube
  • 4. Thread Nut Onto Body Until Snug, Then 1/6th Turn
